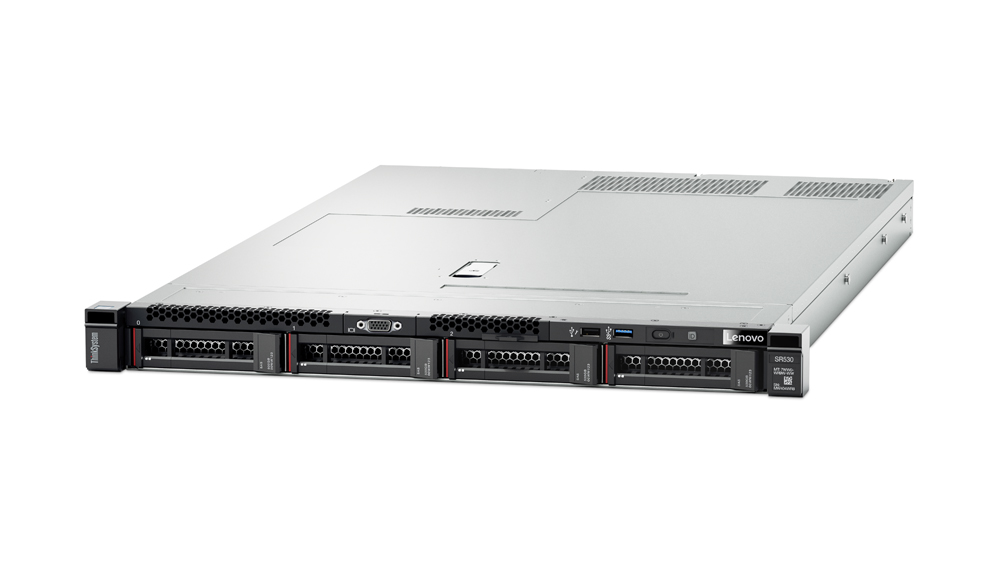

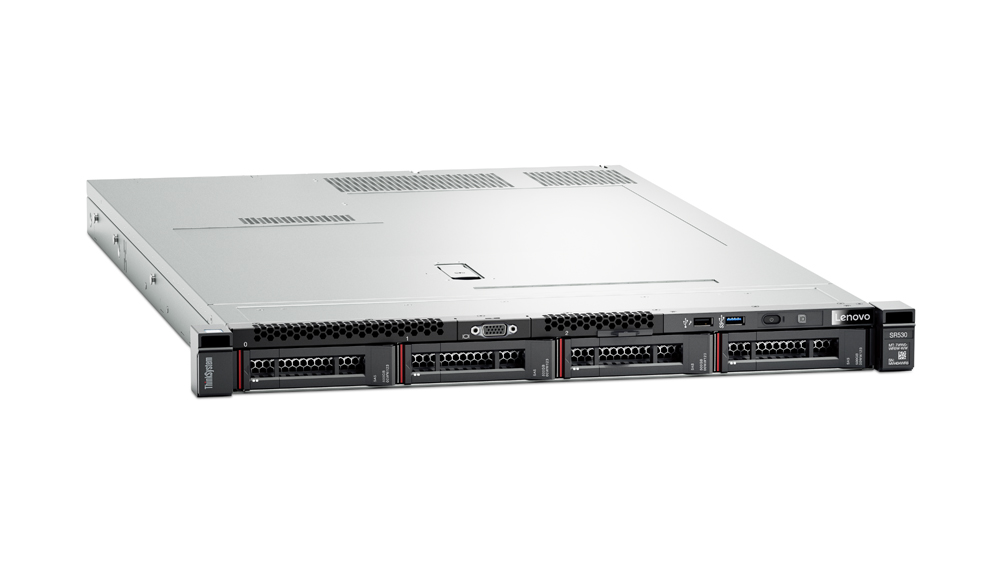

Lenovo ThinkSystem SR530 7X08A0ADEA

PN: 7X08A0ADEA
EAN: 889488540310
Dostupnosť tovaru (sklad):  Na objednávku / informujte sa
Dostupnosť na predajni:  0  (ks)

SR530 Xeon Silver 4208 (8C 2.1GHz 11MB Cache/85W), 16GB 2933MHz (1x16GB, 2Rx8 RDIMM), O/B, 530-8i, 1x750W, XCC Advanced, Tooless Rails

System specifications

The following table lists the system specifications for the SR530 server.

Table 1. SR530 system specifications
AttributeSpecification
Machine types7X07 - 1 year warranty
7X08 - 3 year warranty
Form factor1U rack-mount.
ProcessorUp to two Intel Xeon Gen 2 Bronze, Silver, Gold, or Platinum processors:
  • Up to 22 cores (1.9 GHz core speeds)
  • Up to 3.8 GHz core speeds (4 cores)
  • Two UPI links up to 10.4 GT/s each
  • Up to 30.25 MB cache
  • Up to 2933 MHz memory speed
ChipsetIntel C622.
MemoryUp to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel) with support for the following TruDDR4 RDIMM types and capacities:
  • 8 GB, 16 GB, 32 GB, and 64 GB 2933 MHz.
  • 16 GB and 32 GB 2666 MHz.
Memory protectionError correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
Memory capacityUp to 768 GB with 12x 64 GB RDIMMs (Up to 384 GB per processor).
Drive bays
  • 4 LFF SATA Simple Swap drive bays
  • 4 LFF SAS/SATA hot-swap drive bays
  • 8 SFF SAS/SATA hot-swap drive bays
Internal storage capacity
  • 2.5-inch drives:
    • 122.88TB using 8x 15.36TB 2.5-inch SAS/SATA SSDs
    • 19.2TB using 8x 2.4TB 2.5-inch HDDs
  • 3.5-inch drives:
    • 72TB using 4x 18TB 3.5-inch HDDs
    • 30.72TB using 4x 7.68TB 3.5-inch SAS/SATA SSDs
Storage controller6 Gbps SATA
  • Non-RAID: Onboard SATA AHCI
  • RAID 0/1/10/5: Onboard SATA RAID (Intel RSTe)
12 Gbps SAS/6 Gbps SATA RAID
  • RAID 0/1/10/5/50:
    • RAID 530-8i
    • RAID 730-8i 1GB Cache
  • RAID 0/1/10/5/50/6/60:
    • RAID 730-8i 2GB Flash
    • RAID 930-8i 2GB Flash
    • RAID 930-16i 4GB or 8GB Flash
12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i HBA
Optical drive baysNone. Support for an external USB DVD RW Optical Disk Drive (See Optical drives).
Network interfaces
  • 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
  • Onboard LOM slot for up to two additional 1/10 Gb Ethernet ports:
    • 2x 1 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE RJ-45 ports (no 10/100 Mb support)
    • 2x 10 GbE SFP+ ports (no 10/100 Mb support)
  • Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors.
  • 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
I/O expansion slotsUp to three slots depending on the riser cards installed. The slots are as follows:
  • Slot 1: PCIe 3.0 x8; low profile
  • Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length
  • Slot 3: PCIe 3.0 x8 or x16; low profile
PCIe x16 slot 3 requires the second processor to be installed.
Ports
  • Front: 1x USB 2.0 port with XClarity Controller access and 1x USB 3.0 port; optional 1x VGA port.

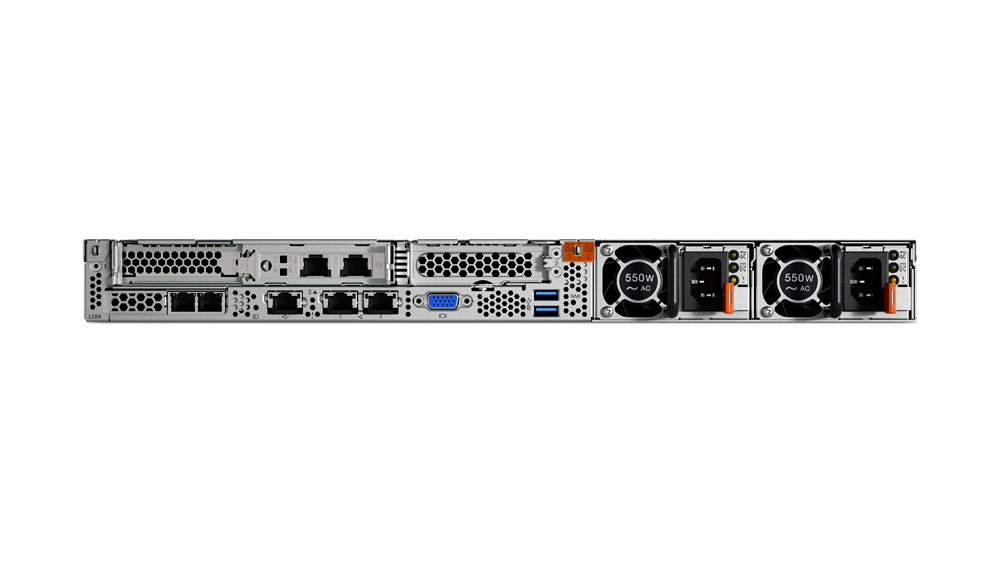

  • Rear: 2x USB 3.0 ports and 1x VGA port; optional 1x DB-9 serial port.
CoolingFour (one processor) or six (two processors) non-hot-swap system fans with N+1 redundancy.
Power supplyUp to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).
VideoMatrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel.
Hot-swap partsDrives (select models) and power supplies.
Systems managementXClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.
Security featuresPower-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).
Operating systemsMicrosoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating systems section for specifics.
WarrantyOne-year (7X07) or three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.
Service and supportOptional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services.
DimensionsWidth: 435 mm (17.1 in.), height: 43 mm (1.7 in.), depth: 750 mm (29.5 in.). See Physical specifications for details.
WeightMinimum configuration: 10.2 kg (22.5 lb), maximum: 16 kg (35.3 lb)
Design - Form Factor
Rack
Processor
Intel® Xeon® Silver 4208 Processor
Storage Controller
1x 530-8i
Memory
1x 16GB (2Rx8 RDIMM)
Chassis
8x 2.5"
Disk Bays
8 / 8 HS SFF
Power Supply
1x 750W Platinum
Ethernet
Open slot
Storage
Open bays
Warranty (period and type)
3-year, Onsite
System Management
XClarity Advanced
Available Extension Slots /rc
1x PCIe x8 LP, 1x PCIe x16 LP
Tool-less Chassis
Tool-less Rail Kit
